Clock Modder – LTC1799 Mod PCB Only

Description

Clock Modder is a simple mod board to make putting an LTC1799 mod in your projects super easy! Great for Pitch Bends and other clock mods!

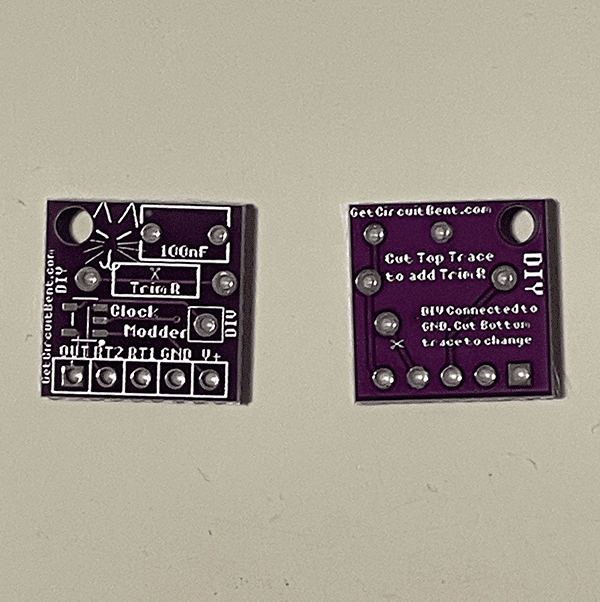

PCB Features:

• Does Not include any components! Check out the pre-built module version if you don’t want to source/solder your own LTC1799 and capacitor.
• Default connections already made on board
• Space for Trim Resistor to fine-tune controls for your application
• DIV pin pulled to a through-hole lead so you can modify if needed for your project (Grounded by default)

Advanced:

See Manual for full details.

To install the Trim Resistor: cut the trace connecting the two connectors for the resistor and install whatever value resistor you need for your application. This adds a lower limit to the control resistance, preventing the clock from going too high and crashing the device.

To change the DIV setting: cut the trace leading to the DIV connector on the back of the board. Jumper the DIV connector to V+ or leave open to change the value. I have personally never used this feature of the chip or needed to, but wanted to make sure it was still accessible without requiring any SMD soldering.
