Clock Modder – LTC1799 Module

Description

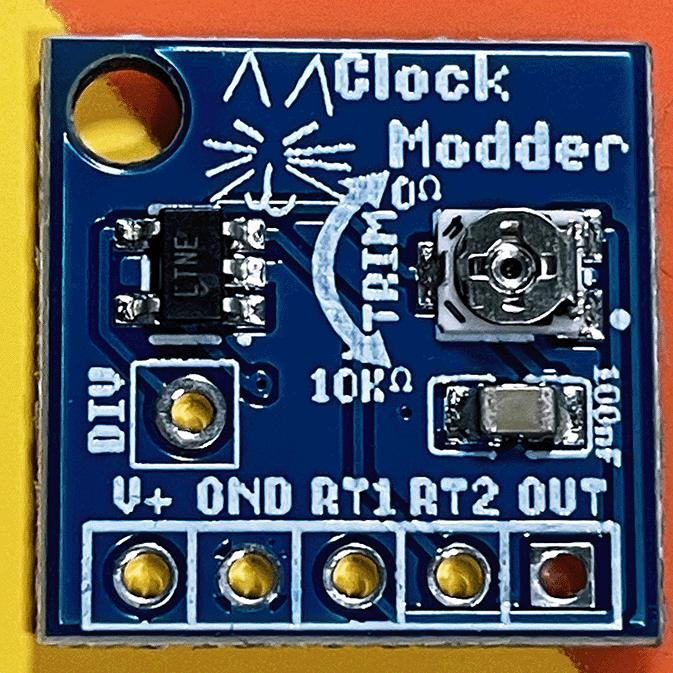

Clock Modder is a simple mod board to make putting an LTC1799 mod in your projects super easy! Great for Pitch Bends and other clock mods!

Pre-Built Module:

• Includes the LTC1799 chip and other components pre-installed – no SMD soldering required!
• Built in Trim Potentiometer to easily fine-tune the chip to your project!
• Analog Devices brand chips (not clones) for improved consistency and reliability over other boards
• Power filter capacitor is pre-installed to ensure stability without extra components
• Default connections already made on board
• DIV pin pulled to a through-hole lead so you can modify if needed for your project (Grounded by default)

Advanced:

See Manual for full details.

Dimensions: 15mm x 15mm (allow 5 mm vertical clearance, but measures 3mm).

To adjust the Trim Resistance: simply turn up the amount of resistance by adjusting the Trim Potentiometer. This adds a lower limit to the control resistance, preventing the clock from going too high and crashing the device. Adjust Trim Resistance until the device does not crash when at the highest speed.

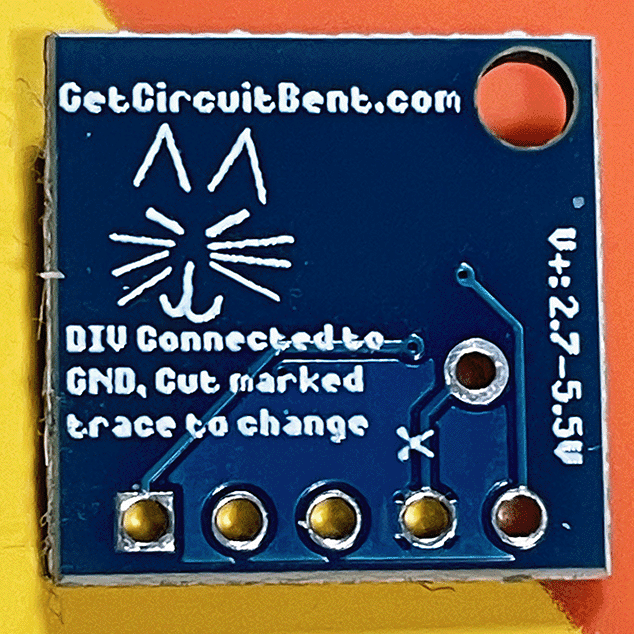

To change the DIV setting: cut the marked trace leading to the DIV connector on the back of the board. Jumper the DIV connector to V+ or leave open to change the value. The DIV setting rarely needs to be altered, but it is still accessible without requiring any SMD soldering.

If you prefer to source your own ICs and do your own soldering, check out the PCB Only version!

Note: I am no longer offering pre-soldered header pins, but if you would like headers included with your board, please add a note to the order and I will accommodate if possible.
